High performance fabric for automotive, sporting goods and decorative applications Plain 500g/m²

Biotex Flax provides high levels of performance, coupled with the ease of processing normally associated with glass-reinforced materials. The materials use a unique twistless technology to provide a combination of sustainability, performance and processability not previously seen in composites. Compared to glass fibre composites, Biotex Flax offers reduced weight, improved environmental impact, vibration damping, similar specific stiffness and safer handling.

Biotex Flax is available in a range of yarn weights and fabric constructions. The materials can be processed using standard composites manufacturing techniques and are suitable for semi-structural and decorative applications in a range of sectors, including automotive, sports & leisure, consumer goods and construction.

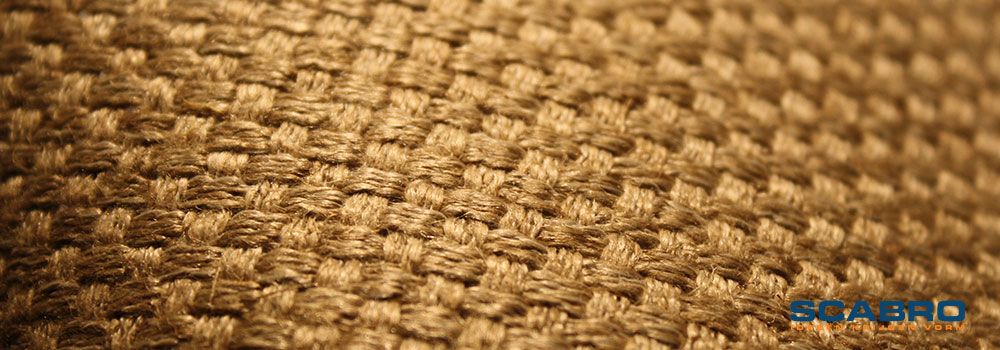

Biotex Flax 500g/m² 4×4 plain weave fabric is typically used for semi-structural and decorative components in applications such as sporting goods, consumer goods and automotive interiors.

Processing
Typical processes for Biotex Flax fabrics include vacuum infusion or resin transfer moulding using either standard resins or bio-based resins. The fabrics can also be pre-pregged, and processing is carried out in the same way as glass fibre.

• Fibre Volume Fraction: 30%
• Density: 1.29 g/cm³
• Tensile Modulus: 9.4 GPa (ISO 527-4)
• Tensile Strength; 70 MPa (ISO 527-4)
• Elongation; 1.4% (ISO 527-4)
• Flexural Modulus: 7.2 GPa (ISO 14125)
• Flexural Strength: 114 MPa (ISO 14125)

Press moulded epoxy prepreg

• Fibre Volume Fraction: 45%
• Density: 1.34 g/cm³
• Tensile Modulus: 11 GPa (ISO 527-4)
• Tensile Strength; 89 MPa (ISO 527-4)
• Elongation; 1.3% (ISO 527-4)
• Flexural Modulus: 7.7 GPa (ISO 14125)
• Flexural Strength: 136 MPa (ISO 14125)

Case Studies

Samsara Surfboard

Flaxland Kano
